1.35 Lac - 1.75 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Details |  View |
| Thickness | 25-70 mm |
| Grips for Flat Bars | 2-8 to 15-25 |
| Click to view more | |
Product Details
Application
Industrial
Condition
New
Country of Origin
India
Max. torque capacity (Nm)
100-3000
Torque Resolution (Nm)
0.01-0.2
Angle of twist (Degree)
0.1
Torsion speed and direction
1.5 RPM Reverse
Distance between grips (mm)
0-400 to 0-1500
Grips for round barofdia(mm) |
4-8 to 45-55
Features :

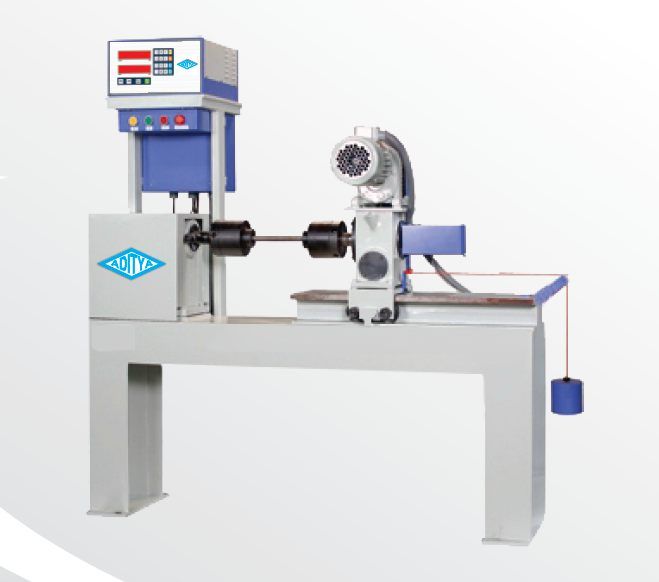

- Suitable for Torsion and twist tests on various metal rods and flats.
- Torque measurement by torque cell.
- One range with a high resolution throughout the range.
- Geared motor to apply the torque to specimen through gear box
- Measurement of Angle of Twist by Rotary Encoder.
- Display of Torque and Angle of twist on LCD display provided on Data Acquisition System.
- Facility for connecting the DAS Panel to PC
- Accuracy of torque measurement ± 1% in the range from 4% to 100% of machine capacity
Looking for "Digital Torsion Testing Machine" ?
